Cat Pumps 35 Frame Plunger Pump Blockstyle 3560DEx
Model: Cat Pumps 3560DEx
Material: Stainless steel
Flow rate: 76 lpm
Pressure: 275 bar
Speed: 1160 rpm
Max. fluid temperature: 71°C
Read more..
Large own stock
Outstanding service
Fast delivery (1-2 days)
Thé Cat Pumps-dealer since 1978
Product description

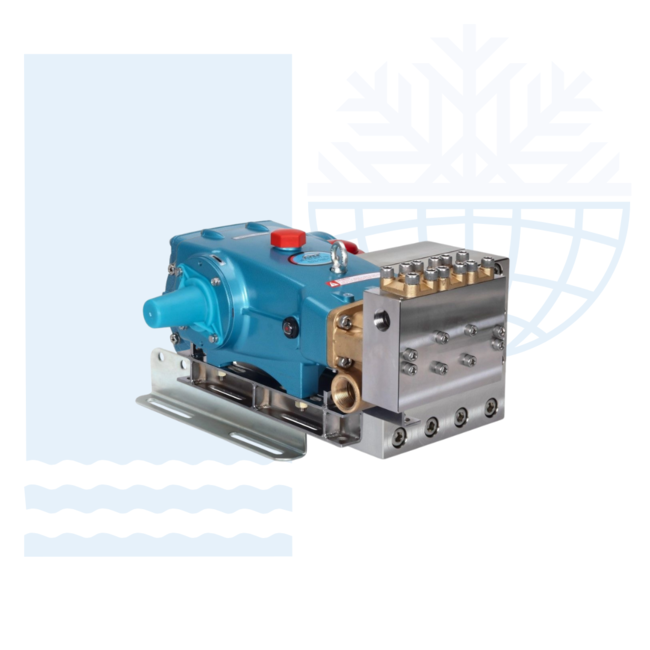

Cat Pumps 3560DEx
The Cat Pumps 3560DEx is a rugged and efficient triplex plunger pump designed for high performance and long life. With its wear-resistant design and high-quality materials, this pump provides a reliable solution for industrial applications with high pressure requirements. With a flow rate of 76 lpm and a maximum pressure of 275 bar, the Cat Pumps 3560DEx delivers excellent performance in heavy-duty applications.
Key Specifications:
- Model: Cat Pumps 3560DEx
- Material: Stainless steel
- Flow rate: 76 lpm
- Pressure: 275 bar
- Speed: 1160 rpm
- Max. fluid temperature: 71°C
Cat Pumps 3560DEx Features
- Triplex plunger design: Provides high efficiency and minimal pulsation.
- Durable double V-packings: Lubricated and cooled by the pumped fluid for longer life.
- Preset low-pressure seals: Provide extra protection against external leakage and require no adjustment.
- Special high-density, polished concentric plungers: Create a wear-resistant surface and extend seal life.
- Easy-to-service wet side: Access without opening the crankshaft.
Sealing options
The Cat Pumps 3560DEx comes standard with NBR seals, but alternative seal materials are available for specific applications, depending on the chemical composition of the pumped fluid or the operating temperature.
| TYPE | OMSCHRIJVING | MAX. TEMP. | SUFFIX |
| NBR | Medium nitril (Buna-N) afdichtingen en O-ringen | 71°C | - |
| FPM | Fluorocarbon (Viton®) afdichtingen en O-ringen, chemische bestendigheid | 82°C | .0110 |
| EPDM | Ethyleen Propyleen Dieen Monomeer afdichtingen en O-ringen | 71°C | .0220 |
| HT | Hoge-temperatuur-hogedrukafdichtingen | 88°C | .3000 |
| STHT | Hoge-temperatuur-hogedrukafdichtingen, speciale Teflon®-lagedrukafdichtingen, NBR O-ringen | 88°C | .3400 |
| Hoge-temperatuur-hogedrukafdichtingen, speciale Teflon®-lagedrukafdichtingen, FPM O-ringen | 88°C | .3410 | |
| PTFE | Zuiver polytetrafluorethyleen (Teflon®) afdichtingen en Buna-N O-ringen | 88°C | .0700 |
| Zuiver polytetrafluorethyleen (Teflon®) afdichtingen en FPM O-ringen | 93°C | .0710 | |
| IPFE | I-perfluorelastomeer (Teflon®) afdichtingen en Isolast O-ringen | 93°C | .0770 |
| ST4 | Speciale mix PTFE hoge- en lagedrukafdichtingen, Buna-N O-ringen | 88°C | .4400 |
| Speciale mix PTFE hoge- en lagedrukafdichtingen, FPM O-ringen | 93°C | .4410 | |
| NBRS | Buna-N siliconenvrije afdichtingen en O-ringen | 71°C | .6000 |
| FPM = Fluorocarbon, EPDM = Ethyleen Propyleen Dieen Monomeer, HT = Hoge temperatuur (EPDM alternatief), STHT = Speciale PTFE Hoge temperatuur, PTFE = Zuiver Polytetrafluorethyleen, IPFE = I-Perfluorelastomeer, ST4 = Speciaal PTFE 4, NBR = Medium Nitril (Buna-N), NBRS = Buna-N siliconenvrije afdichtingen en O-ringen. Viton® en Teflon® zijn geregistreerde handelsmerken van DuPont Dow Elastomers. | |||
More information or request a quote?
Would you like to know more about the Cat Pumps 3560DEx, or are you looking for a customized solution? Feel free to contact us. Our professionals will be happy to help you choose the right configuration for your application.
